4K DisplayPort/HDMI PCIe Graphics Card, 6-Output

NTI Part #: PCIE3-4K18GB-6VW
PCIE3-4K18GB-6VW
PCIE3-4K18GB-6VW
NTI Part #: PCIE3-4K18GB-6VW

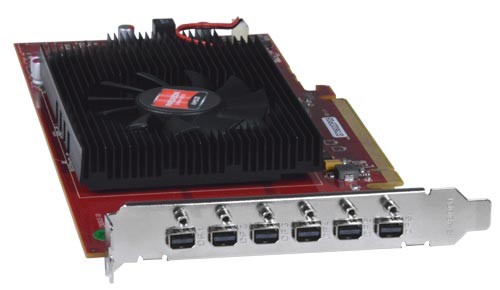

The PCIE3-4K18GB-6VW 4K DisplayPort/HDMI PCIe Graphics Card drives six monitors from a single slot on a PC with resolutions up to 4096x2160 per output. It enables the user to create video walls up to 3x2. Additionally, it can be used as a video splitter.



  • Drive six displays from one single-slot PCIe 3.0 x16 graphics card.

    • Six active mini DisplayPort outputs provide maximum AMD Eyefinity technology support.

    • Independent resolutions, refresh rates, color controls, and video overlays.



  • Supports resolutions up to Ultra-HD 4Kx2K 4:4:4 (4096x2160@60Hz) per output.

  • Create video wall configurations with displays in landscape or portrait orientations.

    • Landscape (horizontal) orientation:

      • AMD Eyefinity: 1x1, 1x2, 1x3, 1x5, 2x1, 2x2, 3x1, 3x2, 4x1, 5x1

      • Microsoft Windows: 1x1, 1x2, 1x3, 1x4, 1x5, 1x6, 2x1, 2x2, 2x3, 3x1, 3x2, 4x1, 5x1, 6x1



    • Portrait (vertical) orientation:

      • AMD Eyefinity: 1x1, 1x2, 1x3, 1x5, 2x1, 2x2, 3x1, 5x1

      • Microsoft Windows: 1x1, 1x2, 1x3, 1x4, 1x5, 1x6, 2x1, 2x2, 2x3, 3x1, 3x2, 4x1, 5x1, 6x1





  • Versatile bezel compensation ability accommodates any screen frame width, and allows for accurate display of the image.

  • Clone content to show the same information on all displays.

  • 4GB of GDDR5 memory provides smooth video playback and graphics performance.

  • Compliant with DisplayPort v1.2 specifications.

  • HDCP compliant.

  • Any HDMI display can be connected by using the DPMM-HD4K18GBF adapter cable (not included).

  • Ideal for a wide range of digital signage applications, including: retail stores, restaurants, corporate lobbies, entertainment venues, trade shows, airports, and more.

Talk to a live agent

Overview

  • GPU: AMD Radeon R7 360
  • GPU Core Clock: 900Mhz
  • Memory: 4GB GDDR5
  • Bus Type: PCIe 3.0 x16
  • Video Output: 6 female mini DisplayPort 1.2
  • Maximum Resolution (per monitor): 4096x2160 @60Hz
  • Video Bandwidth: 21.6 Gbps
  • HDCP compliant
  • Supports LPCM, AC-3, AAC, Dolby TrueHD and DTS Master Audio formats.
    • DDM audio.
    • 7.1-channel audio bitstreaming via HDMI or DisplayPort.
  • APIs Supported: DirectX 12, OpenGL 4.5, Vulkan, Mantle, Open CL 1.2
System Requirements
  • PCIe-based PC with one X16 lane graphics slot available on the motherboard.
  • System Power Supply Required: ?500W
  • Operating Systems Supported:
    • Windows 10 32/64-bit
    • Windows 8.1 32/64-bit
    • Windows 7 32/64-bit
    • Windows Embedded Standard 7 32/64-bit
    • Windows Server 2012 R2 64-bit
    • Windows Server 2008 R2 64-bit
    • Linux
Dimensions
  • WxDxH (in): 4.98x8.67x0.76 (126x220x19 mm).
  • Form Factor: ATX
Cables
  • Use DPMM-HD4K18GBF 4K 18Gbps Mini DisplayPort Male to HDMI Female Adapter Cable to connect an HDMI displays to the graphics card.
  • Cables not included.
Regulatory Approvals
  • RoHS
Warranty
  • Two years
