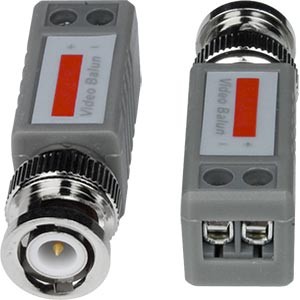

BALUN-STBNC (front & back)
BALUN-STBNC (front & back)

Composite Video Balun/Extender via Single Twisted Pair CAT5

NTI Part #: BALUN-STBNC
Transmits BNC composite video up to 2,000 feet in black/white, and 1,300 feet in color using a single twisted pair of CAT5 cable.

Talk to a live agent

Overview

Transmits BNC composite video up to 2,000 feet in black/white, and 1,300 feet in color using a single twisted pair of CAT5 cable.

Specifications

  • Passively transmits real-time monochrome or color composite video over a single twisted pair of CAT5 UTP cable.
  • Supports CCTV Security Cameras and DVRs.
  • Connectors: 75 ohm male BNC Video, positive and negative screw terminal connectors.
  • Wire: 16-24 AWG Unshielded Twisted Pair
  • DC Loop Resistance: 52 ohms per 1,000 ft (18 ohms per 100m).
  • Bandwidth: 6MHz.
  • Dimensions WxDxH (in.): 0.6x1.8x0.6 with attached 5 in cable.
  • Includes a single BALUN-STBNC-C and a BALUN-STBNC-RA tranceiver.
