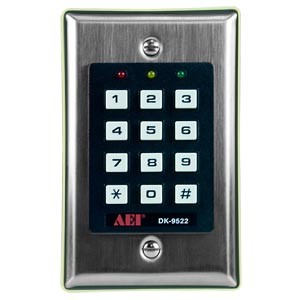

Access Control Digital Keypad

NTI Part #: E-ACK
Output 1 is 5 Amp relay, Output 2 is 1 Amp relay. Operates on 12-24 V AC/DC power supply. Operate fail-safe or fail-secure locking device. 100-120 user codes in 4-8 digits. Non-volatile memory.

Talk to a live agent


  • Two relay outputs controlled by two groups of independent user codes.
    • Output 1: 5 Amp relay for door strike
    • Output 2: 1 Amp relay for other control applications.
  • Normally closed and normally open dry contacts for both output relays.
  • Operate with fail-safe or fail-secure locking device.
  • Open collector outputs for Duress, Key Active and Inter-lock functions.
  • LED indicators for operation status and system status.
  • Door open announcer.
  • Non-volatile memory in case of power failure.
  • Door automatically re-locks after valid access to prevent "tailgate entry".
  • User Codes:
    • Output 1: 100 user codes.
    • Output 2: 10 user codes.
  • Powered by E-2D/5D/16D.
  • Dimensions (WxDxH) in: 2.83x1.69x4.57 (72x43x116 mm).
  • Regulatory approvals: CE, RoHS.
