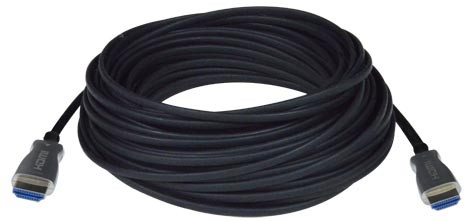

Low-Cost 4K 18Gbps HDMI Active Optical Cable – RoHS Compliant

The XTENDEX® Low-Cost 4K HDMI Active Optical Cable locates an Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI display up to 100 meters (328 feet) from a video source. Using optical fiber, the HD4K18GB-FO-xxM-MMLC provides high reliability HDMI signal transmission with zero signal loss in high noise environments.

• High speed and long distance transmission by optical system up to 100 meters (328 feet).
  • Hybrid cable containing both fiber optic and copper cores.
• Supports Ultra-HD 4Kx2K resolutions to 3840x2160 and 4096x2160 @60Hz YUV 4:4:4, and HDTV resolutions to 1080p @144Hz.
• No loss of signal – delivering crystal clear digital images instantly.
• No external power required.
• HDMI features supported:
  • HDMI 2.0
  • Up to 16-bit Color and 48-bit Deep Color
  • YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0, and RGB
  • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS Dolby, and LPCM 7.1.
  • Bandwidth up to 18Gbps
  • Supports ARC, HDR, and CEC
  • 3D
  • Lip Sync
• HDCP 2.2 compliant.
• Optical fibers immune to signal noise.
• Low RFI/EMI for sensitive applications.
• Supports Plug-n-Play specification.
• EDID learning for the support of any HDMI display device.
• Thin and ultra-lightweight construction.
• Ideal solution for many applications, including:
  • Digital Signage
  • Medical Imaging Equipment
  • Airplane On-board Video System
  • Home Theater
  • TV Broadcast Station
  • Conference Room Video Equipment
• These cables are directional. See labeled connector ends.
