Low-Cost 4K 6.75Gbps HDMI Quad Screen Splitter/Multiviewer

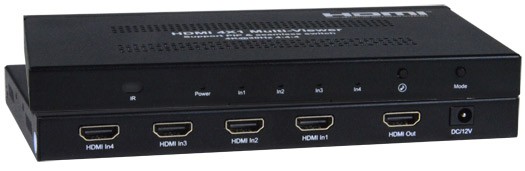

SPLITMUX-4K6GB-4LC (Front & Back)
SPLITMUX-4K6GB-4LC (Front & Back)
Display real-time 4Kx2K 30Hz video from four HDMI sources simultaneously on a single display.

Talk to a live agent


The SPLITMUX® Low-Cost 4K HDMI Quad Screen Multiviewer allows Ultra-HD 4Kx2K 30Hz video from four different sources to be simultaneously displayed on a single HDMI monitor in real time. It is capable of displaying the video signals in quad, dual, PiP, or full screen mode.

  • Quad, Dual, Picture in Picture, and Full Screen display modes.
  • Supports Ultra-HD resolutions up to 3840x2160 @30Hz YUV 4:4:4, and HDTV resolutions to 1080p @60Hz.
  • HDMI features supported:
    • HDMI 1.4
    • Up to 36-bit Deep Color
    • RGB, YCbCr 4:4:4, YCbCr 4:2:2
    • Dolby, LPCM, DTS
    • Bandwidth up to 6.75 Gbps
  • Accepts HDCP 1.4/2.2 signals.
  • Seamlessly switch between the four sources.
  • Switch audio independently of video from active HDMI video sources (video sources turned on and being displayed).
    • E.g. source 3 and source 4 video are active while only source 3 audio is active).
  • Control the multiviewer through front panel buttons or IR remote.
  • Mounting brackets included for easy surface/wall mounting.
