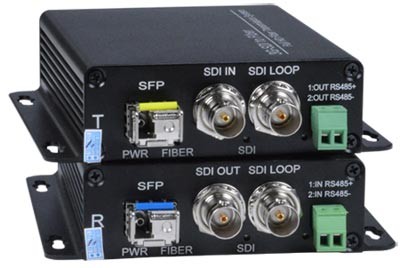

XTENDEX® ST-1FO3GSDI-LC (Local and Remote Unit)
XTENDEX® ST-1FO3GSDI-LC (Local and Remote Unit)

3GSDI Extender via One LC Singlemode or Multimode Fiber Optic Cable

NTI Part #: ST-1FO3GSDI-LC
The XTENDEX® SD/HD/3G-SDI Extender via Fiber Optic Cable locates up to two displays from a SD/HD/3G-SDI video source up to 12.4 miles (20 kilometers) away using a single singlemode LC fiber optic strand and 1,640 feet (500 meters) using multimode fiber optic cable. Each extender consists of a transmitter that connects to a SD/HD/3G-SDI video source and a local loop out, and a receiver that connects to up to two SD/HD/3G-SDI displays.

Talk to a live agent

Overview

The XTENDEX® SD/HD/3G-SDI Extender via Fiber Optic Cable locates up to two displays from a SD/HD/3G-SDI video source up to 12.4 miles (20 kilometers) away using a single singlemode LC fiber optic strand and 1,640 feet (500 meters) using multimode fiber optic cable. Each extender consists of a transmitter that connects to a SD/HD/3G-SDI video source and a local loop out, and a receiver that connects to up to two SD/HD/3G-SDI displays.

  • Signal transmission via one singlemode or multimode LC fiber optic cable.
    • Using singlemode 9-micron cable, extend to 12.4 miles (20 kilometers).
    • Using multimode 50-micron cable, extend to 1,640 feet (500 meters).
  • Supports HDTV resolutions to 1080p @60Hz.
  • Simultaneously transmits to two SD/HD/3G-SDI displays at the receiver.
  • Supports a local display via loop out SDI connector.
  • Plug-and-play functionality – no software needed.
  • Low RFI/EMI for sensitive applications.
  • Cables can be installed in conduit prior to extender installation.
  • Integrated mounting brackets for easy surface/wall mounting.
