32 port USB KVM switch rackmounted OSD
32 port USB KVM switch rackmounted OSD

32 port USB KVM switch rackmounted OSD

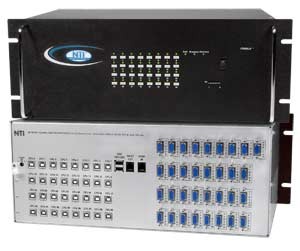

32 port USB KVM Server Switch PC SUN MAC Onscreen Display rackmounted

Talk to a live agent


Control 32 USB computers with 1 USB keyboard and mouse
  • Rackmounted & OSD
  • MAC, PC and SUN supported
  • 1900x1200 video resolution with no degradation



  • Thirty-two female 15-pin HD and thiry-two female USB Type B connectors.
  • Supports USB-enabled PC, SUN and MAC computers with VGA video.
  • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Any legacy PS/2 or SUN computer can be connected by using a USB-PS2-R or USB-SUN-R adapter.
  • Crisp and clear resolution up to 2048x1536.
  • Female 15 pin HD connectors.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 MHz.
  • 39,250 hrs.
Regulatory Approvals
  • CE, RoHS
  • Two years
  • 110 or 220 VAC at 50 or 60 Hz via AC adapter.
  • Power consumption: 15 W
  • Use the PWR-48V-5V4A DC-DC power converter to install the UNIMUX-USBV-32 in a Telecom environment.
  • Female USB Type A connectors.
  • Compatible with most USB keyboards and mice, including wireless.
  • Keyboard and mouse are hot-pluggable.
  • Supports two USB devices directly connected.
  • Supports up to eight USB devices using USB hubs (not included).
  • Operating temperature: 32 to 100°F (0 to 38°C)
  • Storage temperature: -20 to 140°F (-30 to 60°C)
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
