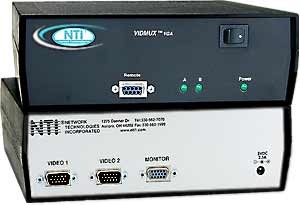

2-port VGA switch, 2 PC's to 1 VGA monitor, remotely controlled

2-port VGA switch, 2 PC's to 1 VGA monitor, remotely controlled

2-port VGA switch, 2 PC's to 1 VGA monitor, remotely controlled

2-port VGA switch, 2 PC's to 1 VGA monitor, remotely controlled

NTI Part #: SE-15V-2-2C1U-TTL

Qty:

Switch 1 VGA monitor between 2 computers.

Talk to a live agent

Overview

Connect two computers to one monitor or user, with external control via a TTL compatible signal.

Specifications

Monitor

Crisp & clear 1920x1200 resolution.
SE-15V-2-2C1U-TTL: Two male and one female 15-pin HD connectors.
SE-15V-2-2U1C-TTL: Two female and one male 15-pin HD connectors.
Bandwidth is 150 MHz.

Control

Female 9 pin D connector for remote control.
- Pin 1=Ground.
- Pin 2=TTL or contact closure signal.

Power

110 or 220 VAC at 50 or 60 Hz via AC adapter.
Power consumption: 5 W

MTBF

SE-15V-2-2C1U-TTL: 87,403 hrs
SE-15V-2-2U1C-TTL: 87,616 hrs

Dimensions

WxDxH: 8x6.2x2.6 in (203x157x66 mm)

Environmental

Operating temperature: 32 to 100°F (0 to 38°C)
Storage temperature: -22 to 140°F (-30 to 60°C)
Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

Cables

3-foot (0.91-meter) multicoax cable included.

Regulatory Approvals

CE, RoHS

Warranty

Two years.

Compatible NTI Products

Combine NTI emulators and switches for complex applications.
- VGA EDID Emulator (VGA-EDID-EMLTR)
